RANGER 4 TONNE ADJUSTABLE OPTION OF 3 HOLES
Description

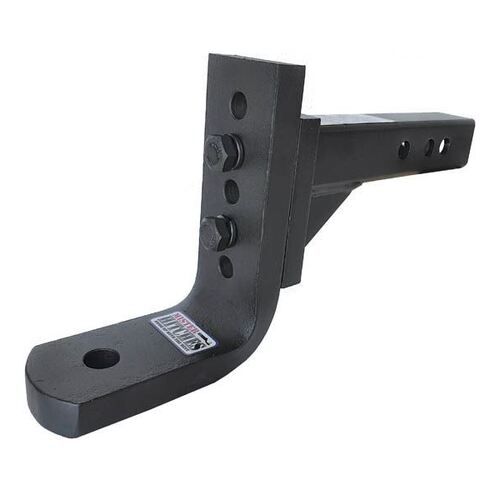

MISTER HITCHES 4000KG EXTRA HEAVY DUTY ADJUSTABLE BALL MOUNT 12 STAGE This extra heavy duty adjustable tow ball mount hitch from Mister Hitches has a weight rating of 4000kg. With 6 stages of drop and rise variants this adjustable tow ball mount hitch is designed to suit your towing needs with 3 drilled holes. This ensures that your trailer stays level when towing. Not all vehicles are and ideal height to tow large caravans or trailers. Towing a caravan at even a slight angle can spell disaster over speed bumps and cause unnecessary wear and tear on the tow ball. The extra heavy-duty adjustable ball mount by Mister Hitches is a lifelong addition to your camping artillery no matter what you end up towing. Features: ADJUSTABLE & REVERSIBLE - 12 STAGES 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM 9MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH USES 12.9 GRADE HIGH TENSILE 16MM BOLTS 25MM X 75MM HEAVY DUTY BALL PLATFORM BLACK POWDER COATED FINISH ROBOTIC WELDED FOR CONSISTENT QUALITY CNC MACHINED FOR MAXIMUM ACCURACY MADE TOUGH FOR AUSSIE CONDITIONS FITS 2" X 2" TOWBAR RECEIVERS Specifications: GROSS TRAILER WEIGHT: 4000KG TONGUE WEIGHT: 400KG BALL HOLE SIZE: 7/8" MAX DROP: 190MM MAX RISE: 165MM LENGTH: 305MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) Shank length to back of mounting plate 235mm Shank first hole location from end 50mm, second hole 75mm, third hold 115mm Shank mounting plate 125x73mm Tongue height 190mm ball mount face (220mm true length) Tongue top mounting hole for shank from top of tongue 30mm, second 60mm, third 90mm, fourth 120mm, fifth 150mm Tongue ball mount spacing from tongue back plate 90mm
